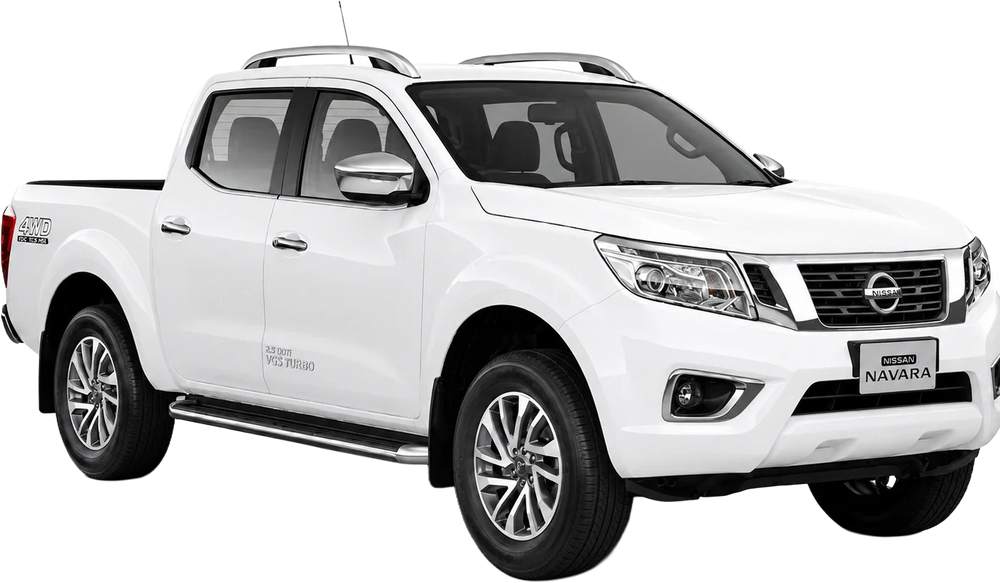

Nissan Navara NP300/D23 2.3L YS23DDTT (Twin Turbo)

The Nissan Navara D23 equipped with the YS23DDTT twin turbo diesel represents a shift toward a more refined and efficiency-focused platform, while still maintaining the practicality expected of a dual-cab ute. Built on an updated chassis with improved ride comfort — particularly with the introduction of rear coil suspension in many variants — the D23 aims to balance everyday usability with towing and load capability. The twin turbo 2.3L engine plays a key role in this, offering improved responsiveness and efficiency compared to earlier diesel platforms. The YS23DDTT is a 2.3L four-cylinder turbo diesel featuring a cast iron block and aluminium cylinder head. It utilises a sequential twin turbocharger system, where a smaller turbo provides low-end response and a larger turbo supports airflow at higher loads. Engine management is handled by a Continental (Siemens) SID309 ECU, which uses advanced torque-based control strategies along with airflow modelling via MAF and MAP inputs to regulate fuel delivery, boost pressure, and overall engine output. From the factory, calibration is heavily influenced by emissions compliance and driveline protection. The ECU applies torque limiting in key areas, particularly in lower RPM and transient throttle conditions, to manage cylinder pressure, exhaust temperatures, and component longevity. With correct calibration, these constraints can be addressed by refining torque request mapping, optimising boost control across both turbochargers, and improving injection timing. In real-world driving, this results in a more responsive and capable vehicle — throttle input becomes more immediate, boost builds more progressively, and the engine delivers stronger and more consistent torque under load.
